Graphic Report: Setting Report Dimensions & Pages for Downhole Reports

This KBA was created to support Geobank administrators adjusting report size over multiple pages when configuring graphic reports.

When configuring a graphic report, you must first consider the level of detail in the report, the sheet size and whether the report is expected to run over multiple pages. There are three key areas to adjust your report dimensions – sheet properties, downhole graphs / text column heights and scale bar.

Sheet properties

In the configuration of a graphic report, under the configuration tab --> Designer tab --> Sheet properties.

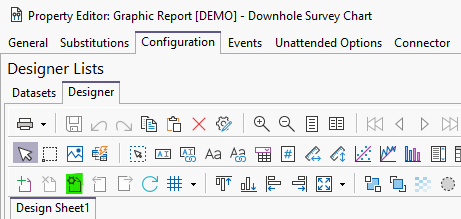

Figure 1: Sheet Properties icon (highlighted in green) in Graphic Report configuration.

Depending on the level of detail in your report, the Page Setup properties can be altered – Page Size, Orientation, Page Dimensions, Margins and Report Dimensions.

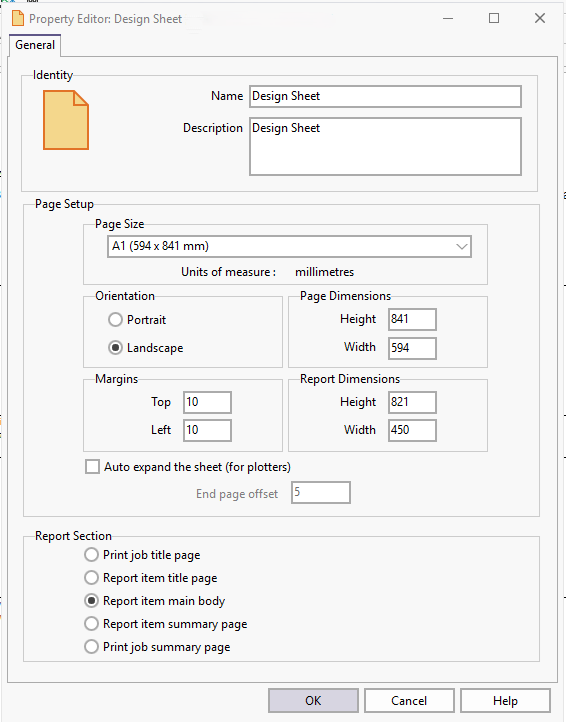

Figure 2: Sheet Properties.

Downhole Graphs & Text Column Heights

Set all applicable downhole graphs and text columns to your report dimensions (or slightly less) under the Size properties.

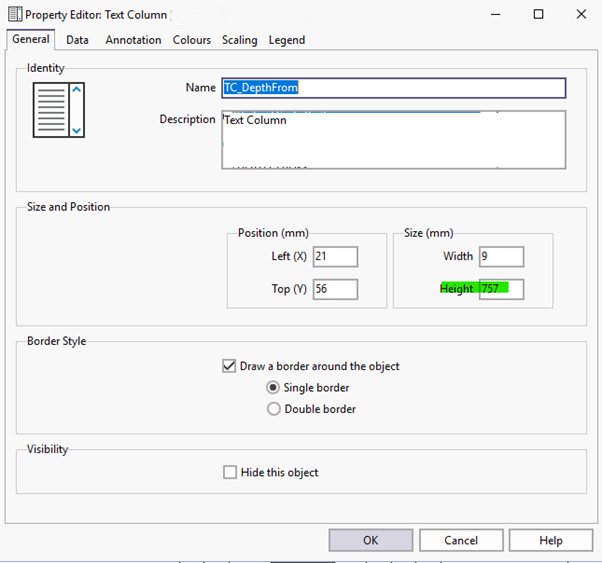

Figure 3: Example Text Column properties

Scale Bar

Under the scale bar properties, set the size to your report dimensions (or slightly less), and hide it if possible. Downhole reports are typically scaled to depths, and generally speaking the depths will be displayed in your report.

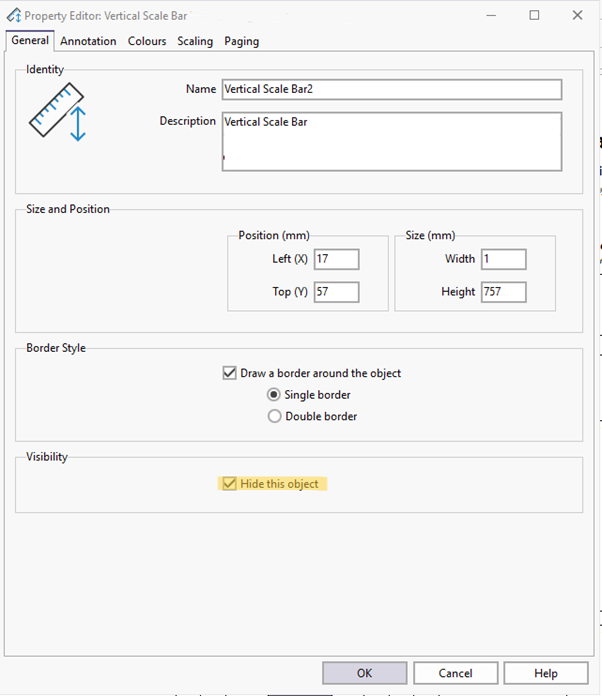

Figure 4: Scale Bar properties.

Depending on the level of detail, use a fixed range to break up your report over multiple pages i.e. 100m like the screenshot below.

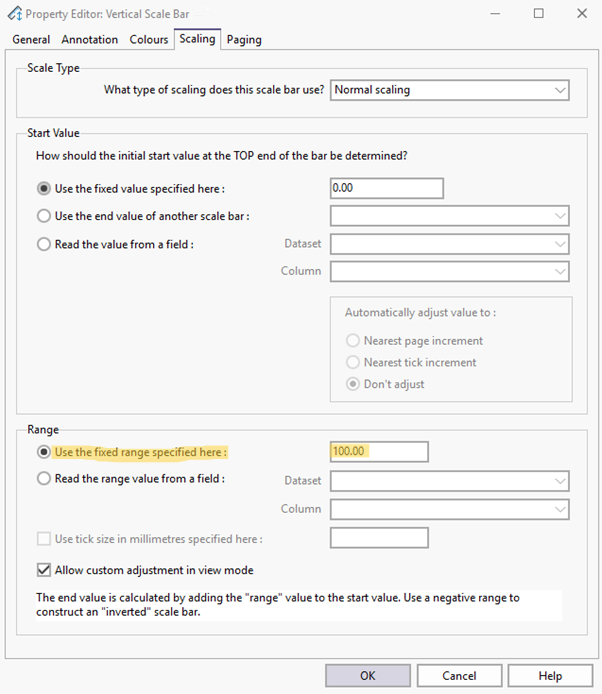

Figure 5: Scale Bar properties – Scaling tab.

Set the paging settings as per below example, replicating your initial fixed range here again.

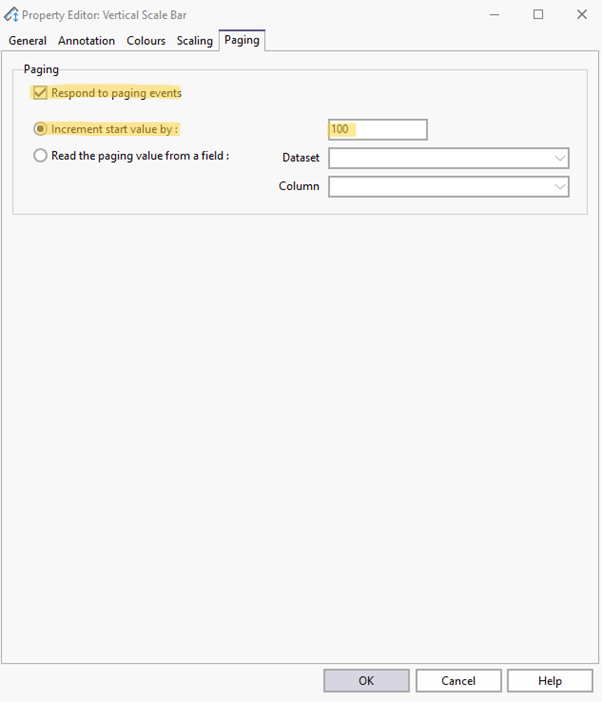

Figure 6: Scale Bar properties – Paging tab.
